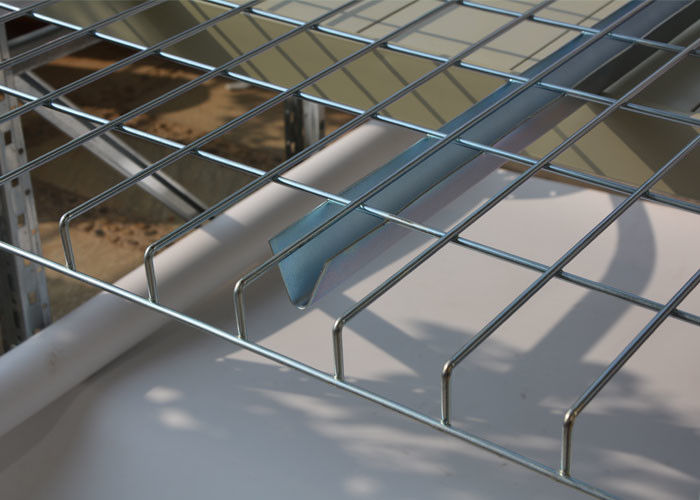

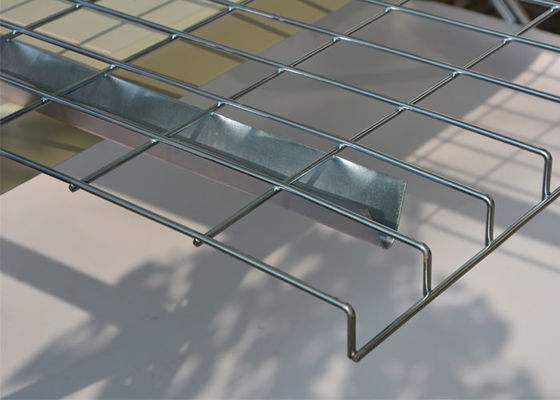

U Channel Steel Storage Wire Mesh Decking For Warehouse

U Channel Steel Storage Wire Mesh Decking For Warehouse

U Channel Steel Storage Wire Mesh Decking For Warehouse
U Channel Steel Storage Wire Mesh Decking For Warehouse U Channel Steel Storage Wire Mesh Decking For Warehouse

Large Image :  U Channel Steel Storage Wire Mesh Decking For Warehouse Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Certification: ISO9001
Model Number: AR-MD095
Detailed Product Description
Type: Flared Channel.u Channel, Support Bar Mesh Size: As Required
Loading Capacity: 100kg-2000kg Durability: High Du
Surface Treatment: Hot-Dipped Galvanized Wire Diam: 5MM
Name: Wire Mesh Decking
Highlight:

Storage Wire Mesh Decking

,

Warehouse Wire Mesh Decking

,

U Channel Steel Wire Mesh Decking

U Channel Steel Storage Wire Mesh Decking For Warehouse​

Steel wire mesh decking widely used in pallet shelves. Used wire mesh decking it can protect the goods on the shelf. The two ends of the “U” channel bracket are flared and flat, which is convenient to be installed on the surface of the shelf beam.

Wire decking is designed to provide the ability to store items on shelves without decking using pallets. Wire decks also provide increased stability and protection to the pallet rack over pallet support beams alone.

Wire deck advantages

Installing wire mesh decking is simple, as it just slides over the pallet rack system’s beams. No tools are needed. When fitted properly, wire decking slides into position effortlessly and sits firmly on the pallet rack beams. The mesh grid adds shelf space for all sorts of decking while maintaining an open passage for smoke or other fire risks to appropriately filter up to sprinkler and suppression systems. In addition to meeting fire code requirements, wire mesh decking also protects people, property, and inventory.

 Technical

Technical Parameters Values
Product Name Steel Wire Decking
Type Flared Channel, U Channel, Support Bar
Mesh Gauge 50*100mm, 50*50mm, 100*25mm
Safety Fireproof
Material Steel
Color Galvanized, Powder Coating
Loading Capacity 100kg-2000kg
Surface Treatment Galvanized, Powder Coating
Mesh Size As Required
Wire Diameter 5.0mm
Light Duty Mesh Deck 100kg-500kg
Heavy Duty Wire Decks 500kg-2000kg
Durability High

Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340

American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"



U Channel Steel Storage Wire Mesh Decking For Warehouse 0





Packing and Shipping:

 U Channel Steel Storage Wire Mesh Decking For Warehouse 1

U Channel Steel Storage Wire Mesh Decking For Warehouse 2
