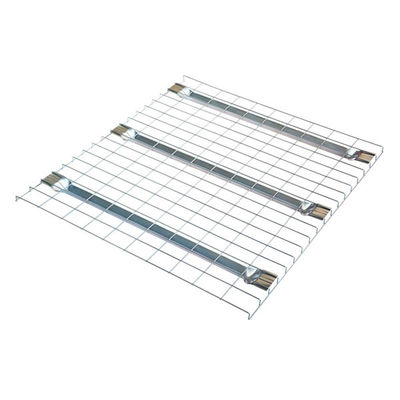

Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking

Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking

Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking
Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking

Large Image :  Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Certification: ISO9001
Model Number: AR-MD57
Payment & Shipping Terms:
Minimum Order Quantity: 300
Price: 4
Packaging Details: Steel Strip with Plastic Film
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 3000T/Month
Detailed Product Description
Mesh Gauge: 50*100mm.50*50mm,100*25mm Loading Capacity: 100kg-3000kg
Application: Pallet And Box Application Surface Treatment: Galvanized.powder Coating
Channel Thickness: 1.5mm/1.8mm/2.0mm/2.5mm HS Code: 73269000
Accessories: Wire Mesh Grid / Hanger Structure: Welded
Highlight:

OEM Wire Mesh Decking

,

Warehouse Rack Wire Decking

,

Galvanized Welded Steel Wire Pallet


 OEM Heavy Duty Industrial Galvanized Welded Steel Warehouse Storage Wire Mesh Panels Decking for Pallet Racking

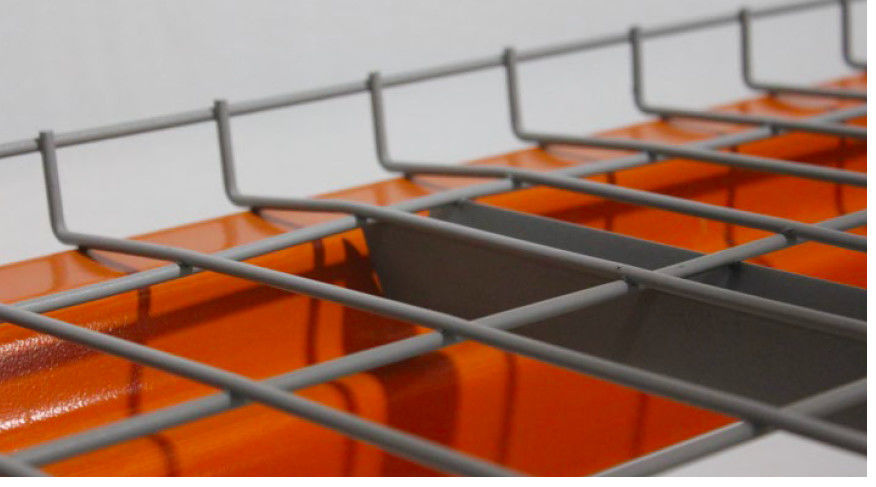

 Mesh Decking Panel is widely used on box beam pallet racks. The two ends of the "U" shape supports are flared flat,easy to install onto the box beam surface with the waterfalls over the beam face to fasten the wire decking. It protects the operators and products, providing heavy load capacity. The F style wire mesh decking can also be used on C-shape I-shape and step beam pallet racks.



A. Made as back mesh and side mesh equipped to racking to protect small things from dropping and decking with support bar to be put on pallet racking.
B. Both powder coating and galvanized are available.
C. Be used as racking side mesh, back mesh, etc., and can also be made wire mesh decking by pallet racking.
D. Two kinds of ribs. One is flat ribs and another is U style ribs.
E. Selected according to customers requirements.
F. Accessories loading can weld 3 to 4 pieces ribs per piece, the major loading need to according to the actual loading to choose the suitable ribs.

Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking 0

Technical

Technical Parameters Values
Product Name Steel Wire Decking
Type Flared Channel, U Channel, Support Bar
Mesh Gauge 50*100mm, 50*50mm, 100*25mm
Safety Fireproof
Material Steel
Color Galvanized, Powder Coating
Loading Capacity 100kg-2000kg
Surface Treatment Galvanized, Powder Coating
Mesh Size As Required
Wire Diameter 5.0mm
Light Duty Mesh Deck 100kg-500kg
Heavy Duty Wire Decks 500kg-2000kg
Durability High

Features:

Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking 1

Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking 2

Packing and Shipping:

Our wire mesh decking product is carefully packaged to ensure safe delivery to your doorstep. Each decking panel is wrapped in protective materials and placed securely in a sturdy cardboard box.



 Galvanized Welded Steel Wire Mesh Decking OEM For Warehouse Pallet Racking 3
