100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking

100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking

100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking
100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking 100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking

Large Image :  100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Certification: ISO9001
Model Number: AR-MD09
Detailed Product Description
Type: Flared Channel.u Channel, Support Bar Mesh Size: As Required
Loading Capacity: 100kg-2000kg Durability: High
Surface Treatment: Hot-Dipped Galvanized Wire Diam: 4.5MM
Name: Wire Mesh Decking
Highlight:

Warehouse Pallet Rack Wire Mesh Decking

,

100kg-2000kg Wire Mesh Decking

,

Fireproof Wire Mesh Decking

The Importance of Wire Mesh Decking:

Systems for warehouse pallet racks are intricately developed and created to meet the unique requirements of a facility’s inventory and operational procedures. For any business that needs to keep effective inventory management, choosing the appropriate type of decking is one of the many crucial factors to think about.

100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack

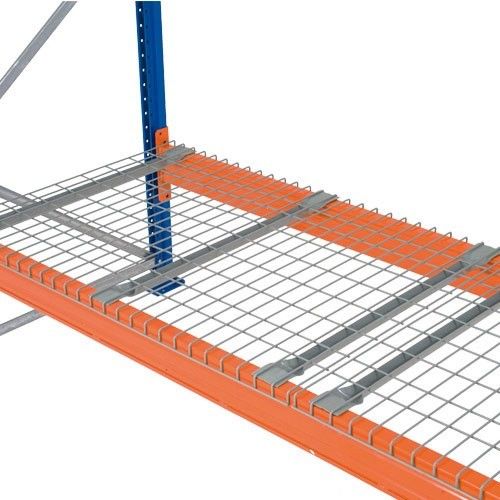

Wire Mesh Decks

Our wiremesh decks fit a wide variety of pallet rack beam types including step beams, box beams and structural channel beams, and are also available for industrial metal shelving and boltless shelving.

Wiremesh decks are the most popular storage rack option in the warehousing industry, acts as a safety feature to help prevent pallet fall-through, and meets fire codes for high piled combustible storage. Wire mesh decking is ideal for hand stacking cartons and provides a deck shelf for storage of various product sizes and changing inventory.

Wire decking is designed to provide the ability to store items on shelves without decking using pallets. Wire decks also provide increased stability and protection to the pallet rack over pallet support beams alone.

Wire deck advantages



  • Easy installation - simple drop in design requires no hardware
  • Fits directly over pallet rack beams in a pallet racking system
  • Increased safety from fire
  • Increases pallet rack weight capacity
  • Several finishes, sizes and styles to choose from

 Technical

Technical Parameters Values
Product Name Steel Wire Decking
Type Flared Channel, U Channel, Support Bar
Mesh Gauge 50*100mm, 50*50mm, 100*25mm
Safety Fireproof
Material Steel
Color Galvanized, Powder Coating
Loading Capacity 100kg-2000kg
Surface Treatment Galvanized, Powder Coating
Mesh Size As Required
Wire Diameter 5.0mm
Light Duty Mesh Deck 100kg-500kg
Heavy Duty Wire Decks 500kg-2000kg
Durability High

Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340

American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"

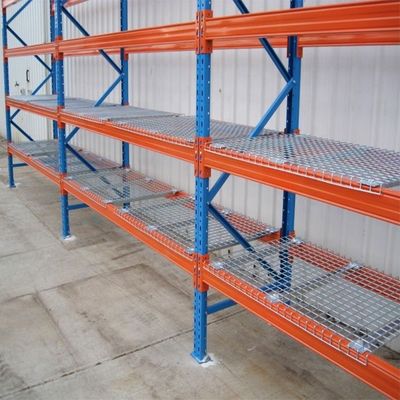

100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking 0





Packing and Shipping:

 100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking 1

100kg-2000kg Wire Mesh Decking Fireproof For Warehouse Pallet Rack Decking 2
