Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel

Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel

Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel
Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel

Large Image :  Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Model Number: AR-MD
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: 5USD
Packaging Details: As the customer's special requirements.
Delivery Time: 18 days
Payment Terms: L/C, T/T
Supply Ability: 2000 Ton/Tons per Month Steel Wire Mesh Decking
Detailed Product Description
Mesh Gauge: 50*100mm.50*50mm,100*25mm Type: Flared Channel.u Channel, Support Bar
Loading Capacity: 100kg-2000kg Durability: High
Wire Diam: 5.0mm Safety: Fireproof
Material: Steel Mesh Size: As Required
Name: Wire Mesh Decking
Highlight:

Galvanized Metallic Pallet Wire Decking

,

Warehouse Storage Pallet Wire Decking

,

Pallet Wire Decking Board



Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel
Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel 0

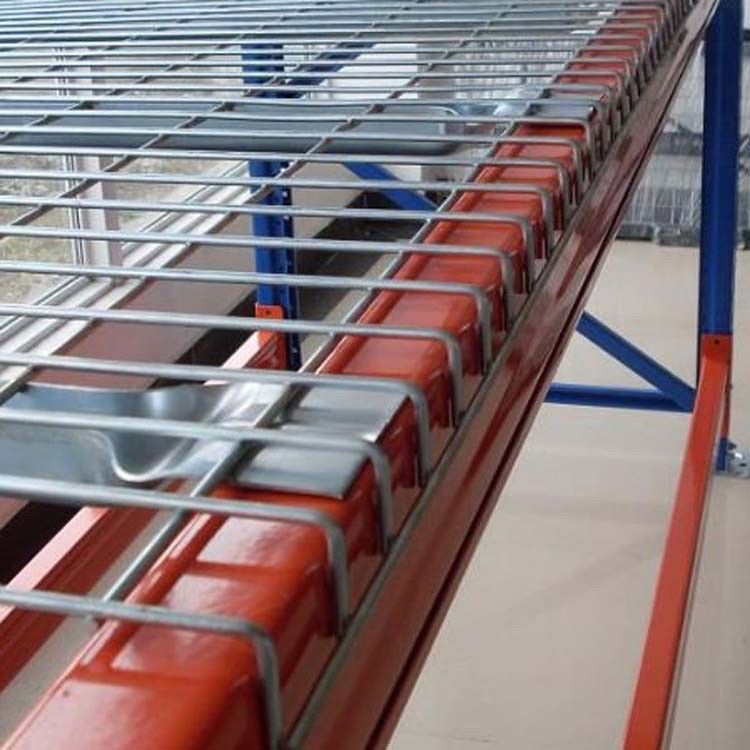

Wire mesh decking is widely used in warehouses, as an accompaniment to rack, it can prevent goods falling off, and offer safety protection.The outside finish can be powder coated, galvanized, and also spray painted.

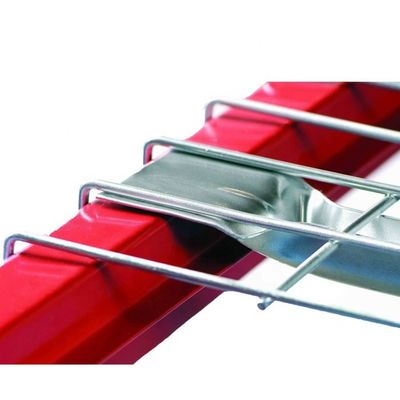

Types of Beams Determine Types of Channel Supports Required:

Typically, warehouse pallet rack layouts use two distinct pallet rack crossbeam types, which need for two distinct wire decking types: Roll-formed step beams and a teardrop-shaped pallet rack (with 1-5/8 “Step-style channels for wire mesh decking are the most common type and are the most common. Flared style channel supports are necessary for structural pallet rack since they have c-channel beams.

The 42″ deep x 46″ wide wire decking with step-style channel supports that accommodate a 1-5/8” pipe is the most common wire deck on the market. Although it may be mounted on most pallet rack beams, the wire deck with flared channel supports is most suited for structural c-channel crossbeam types. It has a distinctive ribbed design.

We even provide a wire deck that complies with FDA regulations for the food and beverage industry by having either an inverted step channel or an inverted flared channel. Food scraps and other garbage can’t accumulate inside the channels because of the reversed channels.

Top advantages of wire decking pallet racks

  • Wear resistance:Does not allow dirt or dust to build up
  • No cutting:
  • Safer:Better fire safety performance
  • Very easy to install: no fixing or fastening
  • Stronger and sturdy:Highly durable and maintenance free
  • Economical – lower cost
  • Better lighting: Increase lighting and access for operator
Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel 1
Some standard sizes of wire mesh decks
Euro Sizes
A. Loading capacity 300kg
A. Loading capacity 300kg
C. Loading capacity 1000kg
Mesh 50×150 mm
Mesh 50×100 mm
Dim (D×W) (mm)
Dim (D×W) (mm)
Dim (D×W) (mm)
600×880
1000×880
1050×1090
1000×880
1050×880
800×880
1050×880
1100×880
1200×880
1100×880
1000×1090
1200×1090
American Sizes
Standard U-channel
Pallet Deck

Dim (D×W) (mm)
Dim (D×W) (mm)

24"×46"
42"×46"
24"×46"
30"×46"
42"×52"
36"×46"
36"×34"
42"×58"
36"×52"
36"×46"
48"×34"
42"×46"
36"×52"
48"×46"
42"×52"
36"×58"
48"×52"
44"×46"
42"×34"
48"×58"
48"×46"

What size and how many wiredeck do i need?

  • Depth: The depth of the wire decks must match the depth of the pallet rack frames.
  • Width: The width of the wire deck depends on the length of the beams.
  • The number of wire decks needed depends on the length of your beams.8ft, 9ft or 10ft beams: 2 decks per beam level.
Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel 2





Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel 3

Galvanized Metallic Warehouse Storage Pallet Wire Decking Board Panel 4
