Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam

Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam

Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam
Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam

Large Image :  Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Model Number: AR-MD
Detailed Product Description
Type: Flared Channel.u Channel, Support Bar Material: Steel
Mesh Size: As Required Loading Capacity: 100kg-2000kg
Durability: High Safety: Fireproof
Surface Treatment: Galvanized.powder Coating Wire Diam: 5.0mm
Name: Wire Mesh Decking
Highlight:

Heavy Duty Wire Mesh Deck Panels

,

Steel Wire Mesh Deck Panels

,

Heavy Duty Warehouse Wire Decking

Warehouse Heavy Duty Steel Wire Mesh Deck Panel

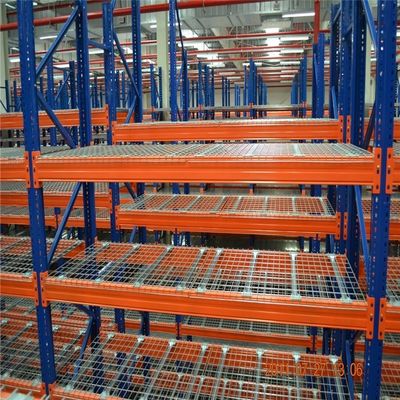

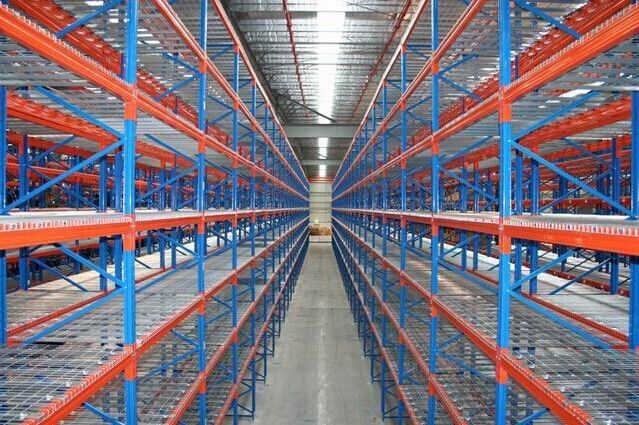

Wire mesh deck is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. It is wildly used in warehouse, as an acompany of rack. The outside finish of wire mesh can be powder coated, galvanized, and also spray paint.
Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam 0

Features:

  1. Enhanced fireplace security: The product exhibits outstanding performance in terms of fireplace safety, fulfilling even the most stringent requirements of insurance companies.
  2. Increased strength: The material used in the product's construction is extremely durable, making it virtually maintenance-free.
  3. Easy to manage: Installation of the product is quick and hassle-free, requiring no fixing or buckling.
  4. Flexible: Suitable for storage of all kinds, including cold rooms and freezers.
  5. Versatile: Can be used for storage of pallets or small components in any area.
  6.

 Technical

Technical Parameters Values
Product Name Steel Wire Decking
Type Flared Channel, U Channel, Support Bar
Mesh Gauge 50*100mm, 50*50mm, 100*25mm
Safety Fireproof
Material Steel
Color Galvanized, Powder Coating
Loading Capacity 100kg-2000kg
Surface Treatment Galvanized, Powder Coating
Mesh Size As Required
Wire Diameter 5.0mm
Light Duty Mesh Deck 100kg-500kg
Heavy Duty Wire Decks 500kg-2000kg
Durability High

Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340

American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"

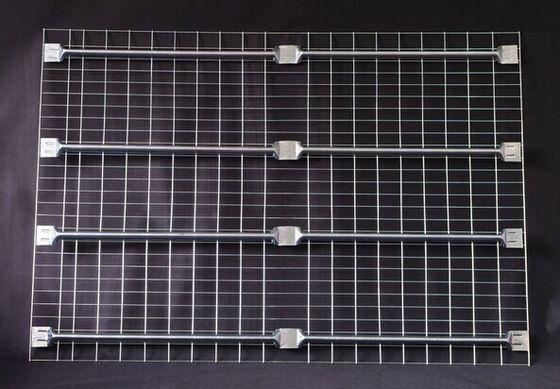

Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam 1





Packing and Shipping:

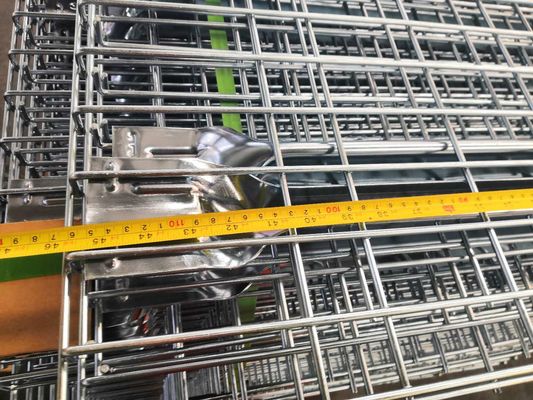

 Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam 2

Warehouse Heavy Duty Steel Wire Mesh Deck Panels 5.0mm Wire Diam 3
