Steel Wire Mesh Decks Pallet Rack Galvanized / Powder Coating For Pallet And Box
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Flared Channel.u Channel, | Material: | Steel |
|---|---|---|---|
| Loading Capacity: | 100kg-3000kg | OEM: | YES |
| Color: | As Required | Surface Treatment: | Galvanized / Powder Coating |
| Wire Diam: | 3.0-6.0mm | Name: | Wire Mesh Decks |
| Highlight: | Steel Wire Mesh Decks Pallet Rack,Wire Mesh Decks Pallet Rack Galvanized |
||
Steel Wire Mesh Decks Pallet Rack Galvanized / Powder Coating For Pallet And Box
Wire decking is a popular choice because it’s versatile and affordable. Wire mesh decking can be used to store everything from boxes to full pallet loads. The design makes mesh decking easy to see what you’re storing without having to unload everything.
Our steel decking option is ideal for heavy-duty inventory. The smooth surface is great for storing.

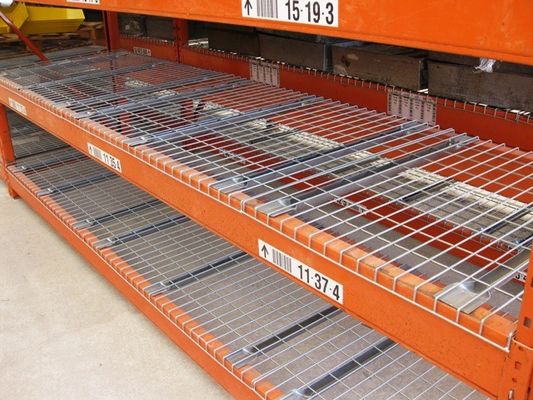

Pallet Rack Wire Decking, or Wire Mesh Deck, provides a safe surface to support pallets for pallet racking. Pallet rack wire decking increases the safety and versatility of your pallet rack system by allowing you to store more than just standard pallets. Bins, boxes, and other products are commonly stored on wire decking.
Technical
| Technical Parameters | Values |
|---|---|
| Product Name | Steel Wire Decking |
| Type | Flared Channel, U Channel, Support Bar |
| Mesh Gauge | 50*100mm, 50*50mm, 100*25mm |
| Safety | Fireproof |
| Material | Steel |
| Color | Galvanized, Powder Coating |
| Loading Capacity | 100kg-2000kg |
| Surface Treatment | Galvanized, Powder Coating |
| Mesh Size | As Required |
| Wire Diameter | 5.0mm |
| Light Duty Mesh Deck | 100kg-500kg |
| Heavy Duty Wire Decks | 500kg-2000kg |
| Durability | High |
Euro Sizes
| Euro Sizes | ||
| A. Loading capacity 300kg | B. Loading capacity 800kg | C. Loading capacity 1000kg |
| Mesh 50×150 mm | Mesh 50×100mm | Mesh 50×100mm |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) |
| 600×880 | 1000×880 | 1000×1340 |
| 1000×880 | 1050×880 | 1050×1340 |
| 1050×880 | 1100×880 | 800×1340 |
| 1100×880 | 1000×1090 | 1200×1340 |
American Sizes
| American Sizes | ||
| Standard U-channel | Flared channel | |
| Dim (D×W) (mm) | Dim (D×W) (mm) | |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
Packing and Shipping:
