Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam

Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam

Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam
Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam

Large Image :  Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Model Number: AR-MD
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: 4usd
Delivery Time: 14
Payment Terms: L/C, D/P, T/T
Supply Ability: 50000pc/month
Detailed Product Description
Safety: Fireproof Type: Flared Channel.u Channel, Support Bar
Material: Steel Mesh Gauge: 50*100mm.50*50mm,100*25mm
Application: Pallet And Box Application Wire Diam: 5.0mm
Color: Galvanized.powder Coating HS CODE: 73089000
Name: Wire Mesh Decking Production Capacity: 50000pc/month
Highlight:

Fireproof Steel Wire Mesh Decking

,

Wire Mesh Decking 5.0mm

Fireproof Steel Wire Mesh Decking with 50*100mm Mesh Gauge 5.0mm Wire Diam Galvanized Finish

Product Description:

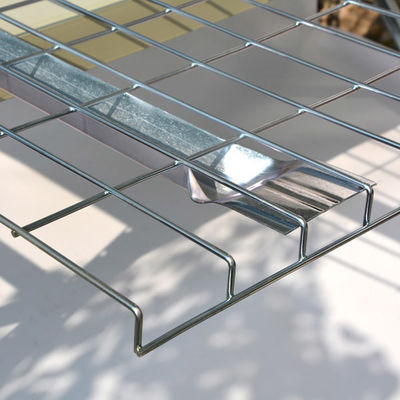

Steel Wire Mesh Deck Panels
Wire decking is used as support of material or products that are placed on certain pallet rack. It allows the visibility and air flow of racking system , and it's easy installation by just put the wire deck on rack without no tools required.
Wire mesh decking is a type of shelving made from welded steel wire mesh panels with support bars underneath. They are used in warehouses and industrial settings to create flat surfaces on pallet racking systems for storing pallets and loose items.

Features:


1). Less dangerous: Much better fireplace security overall performance, fulfills strict insurance coverage needs
2). Stronger: Extremely long lasting as well as upkeep free of charge
3). Simple to Manage: Fast and simple in order to install-no repairing or even buckling
4). Flexible: Well suited for just about all storage space, such as coldrooms as well as freezers
5). Versatile: Enables you to store pallets or even little components in a area.

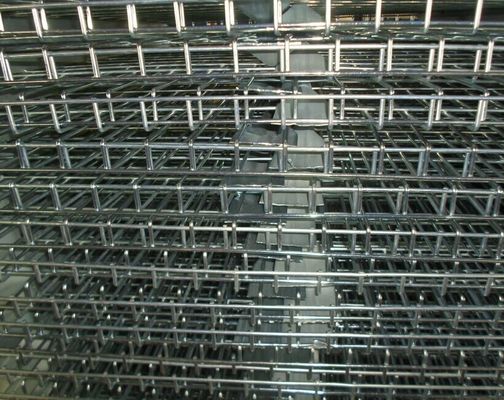

Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam 0

Technical  :

Attribute Value
Product Name Wire Mesh Decking
Color Galvanized.Powder Coating
Material Steel
Durability High
Application Pallet and Box Application
Loading Capacity 100kg-2000kg
Wire Diam 5.0mm
Surface Treatment Galvanized.Powder Coating
Mesh Gauge 50*100mm, 50*50mm, 100*25mm
Mesh Size As Required
Safety Fireproof

Some standard sizes of wire mesh decking

Euro Sizes

Euro Sizes
A. Loading capacity 300kg B. Loading capacity 800kg C. Loading capacity 1000kg
Mesh 50×150 mm Mesh 50×100mm Mesh 50×100mm
Dim (D×W) (mm) Dim (D×W) (mm) Dim (D×W) (mm)
600×880 1000×880 1000×1340
1000×880 1050×880 1050×1340
1050×880 1100×880 800×1340
1100×880 1000×1090 1200×1340

American Sizes

American Sizes
Standard U-channel Flared channel
Dim (D×W) (mm) Dim (D×W) (mm)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"

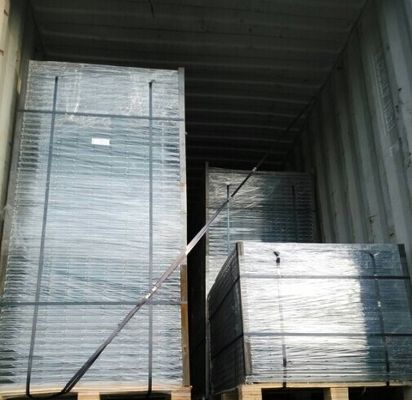

Packing and Shipping:

 Fireproof Steel Wire Mesh Decking With 50*100mm Mesh Gauge 5.0mm Wire Diam 1
