RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay
RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay

Large Image :  RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay Get Best Price

Product Details:
Place of Origin: China
Brand Name: Acerack
Certification: RMI / AS4084-2012 / CE / ISO9001
Model Number: AR-SP62
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 15-25days
Payment Terms: L/C, T/T
Supply Ability: 5000T/Month
Detailed Product Description
Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request Load Capacity:: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
HS Code: 73089000 Surface Treatment:: Powder Coating /Galv/Hot Dip Galv
Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037( Yellow), Or Custom Color As Request Usage: Tool Rack, Clothing, Tools, Food, Industrial, Warehouse Rack
Transport Package: Airbag; Air Bubble; Wooden Pallet, Etc
Highlight:

RAL5017 Color Warehouse Pallet Rack

,

Customizable Warehouse Pallet Rack

,

4000kgs/Bay Warehouse Storage Rack

 High quality Heavy Dury Pallet Racking , Warehouse Rack Suppliers

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 0



  Heavy Duty Steel Selective Pallet Racking for Industrial Warehouse Storage Solutions

 Acerack pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility.It installs quickly and adjusts easily to your specific needs.





Why choose  ACE racks?

1. As a leading racking manufacturer in China, we enjoy 20+ years of experience.
2. High quality raw material of steel .
3. Industry's first contract tracking system helps you know the updates of your purchased products.
4. Certification: ISO9001:2008, SGS



Name
  Pallet Rack
Size
Customized Size
Material
Steel
Depth/Width/Height
Customized
Color
Customized
Weight Capacity
500~5000kg
Certification
AS4084-2012 / CE / ISO / RMI
Pitch holes
50.8mm 75mm,76.2mm
Surface finish
Powder Coated
Usage
Warehouse Storage System
Application
Widely Used
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available





Acerack Storage racking detailed introduction:



Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.n to make quick delivery.

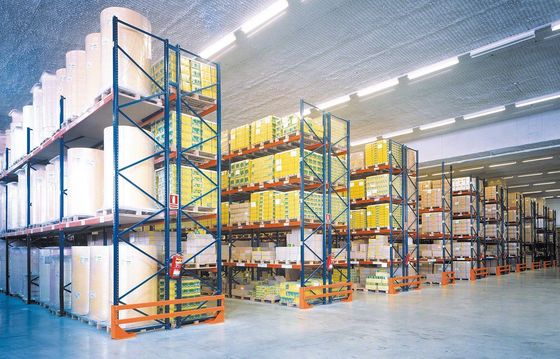

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 1

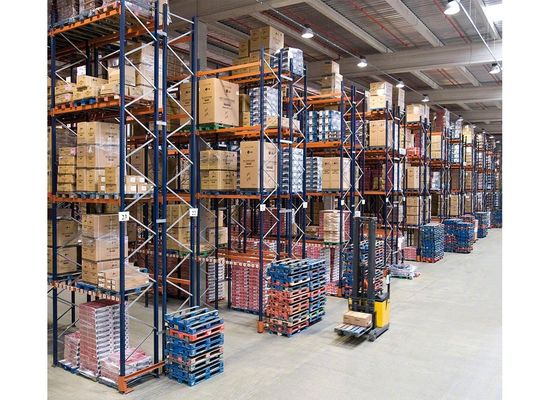

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 2

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 3

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 4

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 5

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 6

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 7





RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 8



Packaging & Shipping

Standard export package by pallet and covered by plastic film:

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 9

RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 10RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 11



RAL5017 Color Warehouse Pallet Rack Customizable 4000kgs~30000kgs/Bay 12





1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C  etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
