Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution
Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution

Large Image :  Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution Get Best Price

Product Details:
Place of Origin: China
Brand Name: Acerack
Certification: RMI / AS4084-2012 / CE / ISO9001
Model Number: AR-SP1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 15-25days
Payment Terms: L/C,T/T
Supply Ability: 5000T/Month
Detailed Product Description
Name: Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Load Capacity:: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay Material: Q235B/D Steel And Also Q355B/D.High Strength Steel
Surface Treatment:: Powder Coating /Galv/Hot Dip Galv Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037( Yellow), Or Custom Color As Request
Surface Treatment::: Powder Coating /Galvanized/Hot Dip Galvanized
Highlight:

Steel Warehouse Pallet Rack

,

Dexion Standard Style Pallet Rack

,

Heavy Duty Pallet Rack



Dexion standard Style Warehouse Shelving Heavy Duty Selective Pallet Rack ​

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 0

Pallet racking systems offer direct access to all pallets, making them the most cost-effective and efficient storage solution for warehouses. Composed of durable upright frames and beams, our 100% Dexion-compatible pallet racks come with detailed drawings for easy installation and customization.

Why Choose Our Pallet Racking Systems?

  • Industry-Leading Design: As the most popular and functional racking solution, our pallet racks are ideal for storing a wide variety of palletized goods.

  • Versatile Storage: Perfect for warehouse systems requiring high-density storage and easy access to inventory.

  • Heavy Duty Performance: Designed to handle heavy loads with stability and durability.

Our Expertise
With over 17 years of experience in designing and manufacturing storage solutions, we specialize in:

  • Pallet Racking and Shelving Systems

  • Cantilever Racks

  • Mezzanine Platforms

  • Radio Shuttle Systems

  • Automated Storage and Retrieval Systems (ASRS)

  • Wire Mesh Decks

Why Trust Us?

  • Proven Track Record: Annual sales exceeding $50 million USD, with heavy-duty pallet racks being a core product.

  • Quality Assurance: Stable, reliable products built to last.

  • Competitive Pricing: Affordable solutions without compromising quality.

  • Exceptional Service: Dedicated support from design to installation.

As a leading racking manufacturer in China, we are committed to delivering innovative and reliable storage solutions tailored to your needs. Trust us to optimize your warehouse space and enhance operational efficiency.



Name
  Pallet Rack
Size
Customized Size
Material
Steel
Depth/Width/Height
Customized
Color
Customized
Weight Capacity
500~5000kg
Certification
AS4084-2012 / CE / ISO / RMI
Pitch holes
50.8mm 75mm,76.2mm
Surface finish
Powder Coated
Usage
Warehouse Storage System
Application
Widely Used
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available



Advantages

-- Size and color be customized
-- Direct access to each pallet
-- Simple stock management
-- Adaptable to any product volume, weight or size
-- Cost savings through wide span beams with piston lock connectors



Acerack Storage racking detailed introduction:



Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.n to make quick delivery.
Delivery Time Within 25 days for ordinary order quantity. Big production capacity allows us in a positio

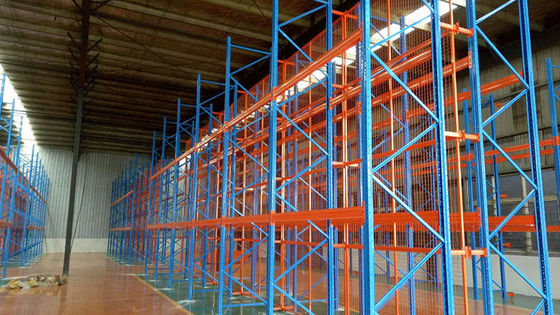

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 1

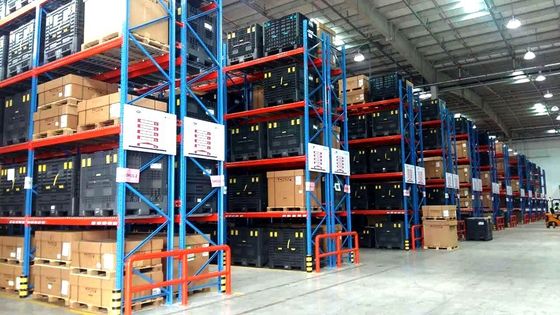

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 2

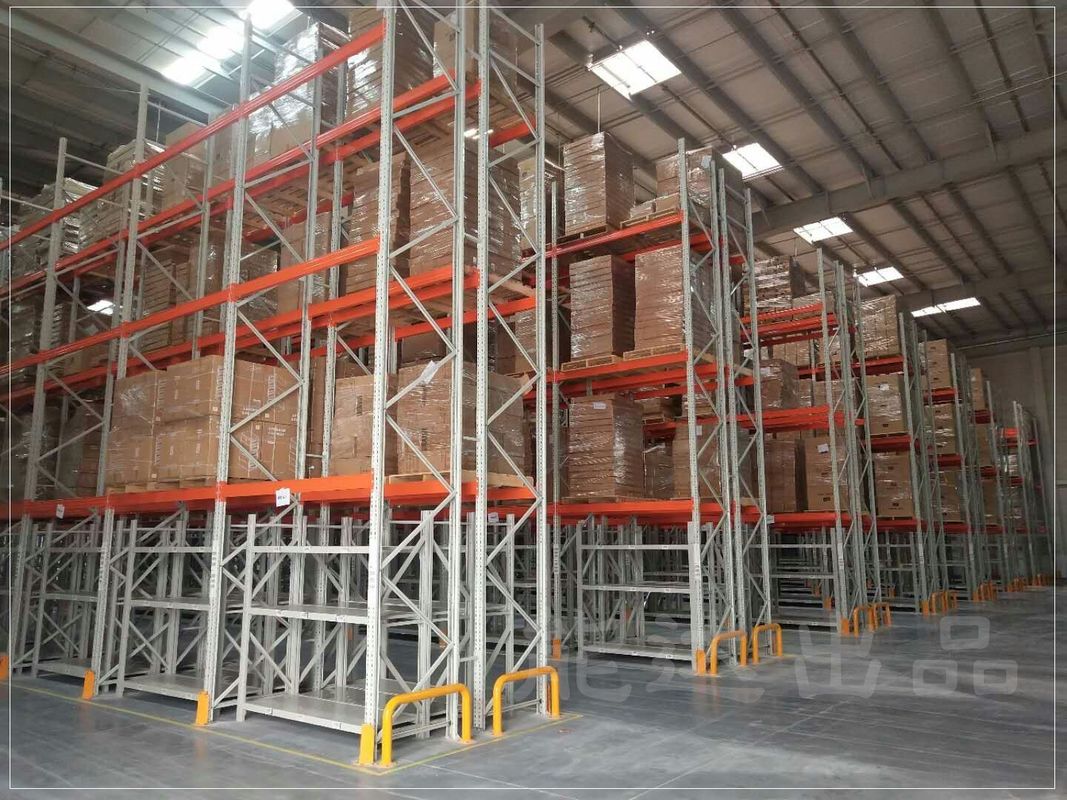

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 3

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 4

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 5

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 6

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 7





Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 8



Packaging & Shipping

Standard export package by pallet and covered by plastic film:

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 9

Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 10Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 11



Heavy Duty Steel Warehouse Pallet Rack Dexion Standard Style Storage Solution 12





1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C  etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
