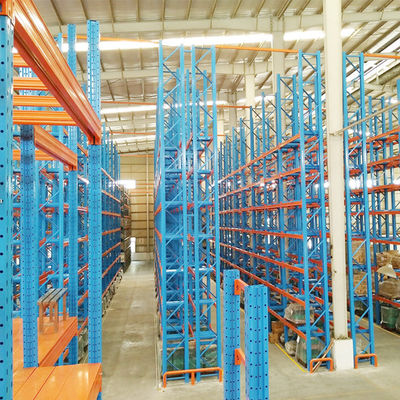

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack
Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack

Large Image :  Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack Get Best Price

Product Details:
Place of Origin: China
Brand Name: Acerack
Certification: RMI / AS4084-2012 / CE / ISO9001
Model Number: AR-SP15
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: 12usd
Packaging Details: Standard package as required
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7000T/Month
Detailed Product Description
Name: Warehouse Pallet Racking Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Load Capacity:: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay Material: Q235/SS400/Q355
Color: (Blue), Pure Orange Or Custom Color As Request Surface Treatment::: Powder Coating /Galvanized/Hot Dip Galvanized
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Highlight:

SS400 Steel Pallet Rack

,

Q355 Steel Pallet Rack

,

Heavy Duty Storage Warehouse Pallet Racking



Heavy Duty Warehouse Storage Racking Metal Shelving / Steel Pallet RackHeavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 0



Heavy Duty Warehouse storage Racking System Dexion Style Pallet rack Shelves



 Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. 100% Dexion compatiable pallet rack with detail drawing.


 Heavy duty pallet rack is the main components of every warehouse system. Single selective rack is pallet rack in which every pallet is accessible from an aisle. This is the most common of all rack designs and assures that any pallet can be accessed at any time.



Ace Storage Equipment Manufacturer is one of leading and professional racking manufacturer and storage solution provider in china who adheres to the stringent requirement of SEMA all the time.

Our principal business continues to revolve around warehouse equipment manufacturer, warehouse design, supply, install, ETC. In order to successfully manage a warehouse operation, it means maximising and maintaining the potential of the available storage space.





Name
  Pallet Rack
Size
Customized Size
Material
Steel
Depth/Width/Height
Customized
Color
Customized
Weight Capacity
500~5000kg
Certification
AS4084-2012 / CE / ISO / RMI
Pitch holes
50.8mm 75mm,76.2mm
Surface finish
Powder Coated
Usage
Warehouse Storage System
Application
Widely Used
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available





Acerack Storage racking detailed introduction:



Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.n to make quick delivery.

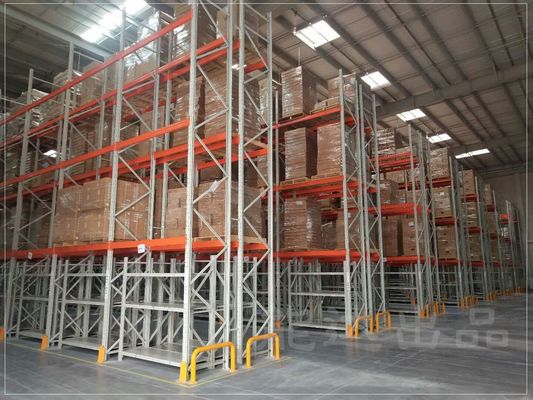

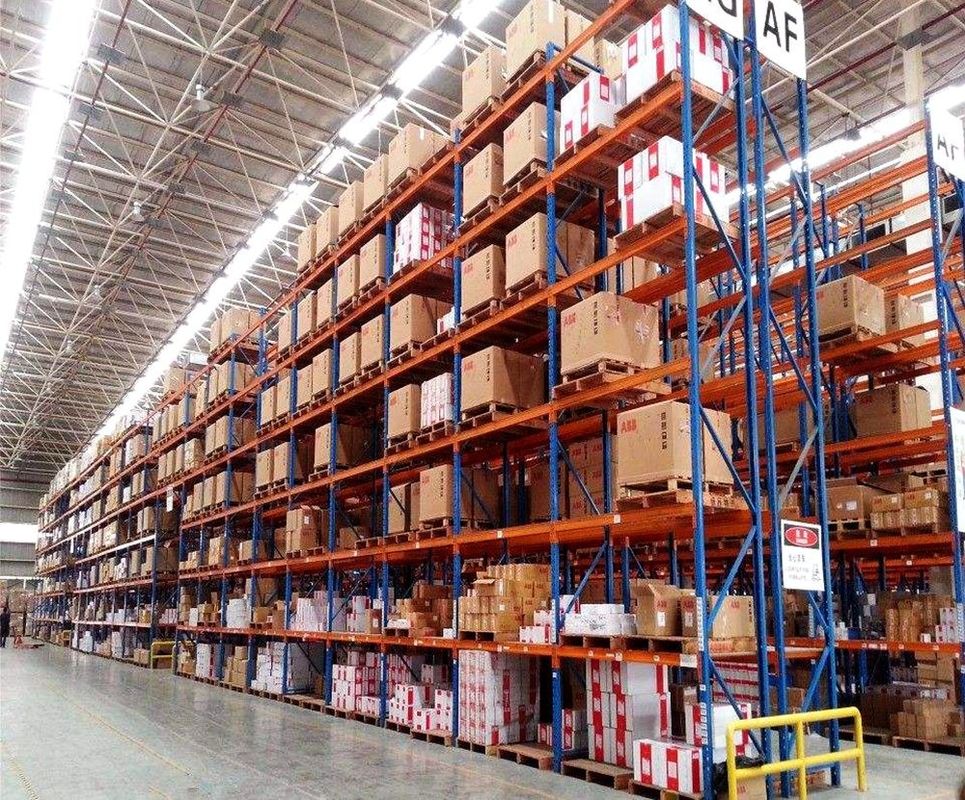

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 1

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 2

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 3

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 4

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 5

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 6

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 7





Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 8



Packaging & Shipping

Standard export package by pallet and covered by plastic film:

Heavy Duty Storage Warehouse Pallet Racking Q235/SS400/Q355 Steel Pallet Rack 9









1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C  etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
