ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​

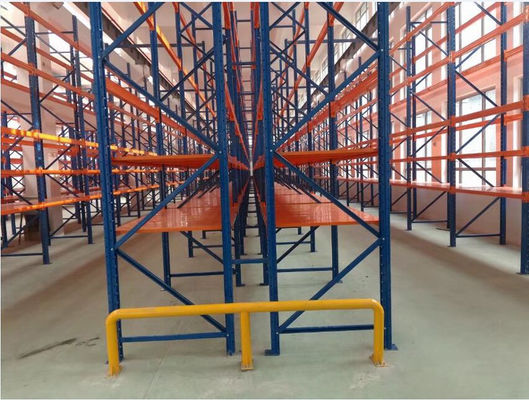

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​

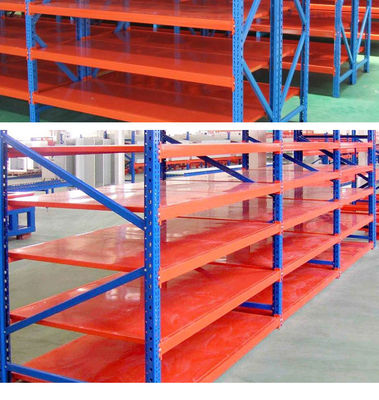

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​

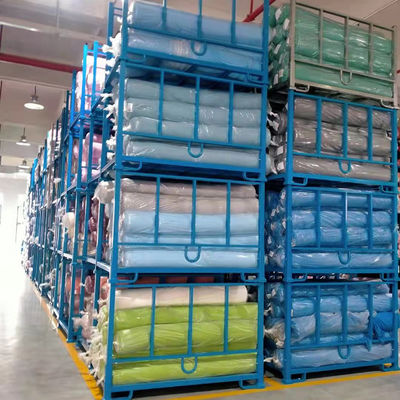

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​

Large Image :  ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ Get Best Price

Product Details:
Place of Origin: China
Brand Name: Acerack
Certification: RMI / AS4084-2012 / CE / ISO9001
Model Number: AR-SP1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 15-25days
Payment Terms: L/C, T/T
Supply Ability: 5000T/Month
Detailed Product Description
Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request Load Capacity:: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Material: Q235B/D Steel And Also Q355B/D.High Strength Steel Surface Treatment:: Powder Coating /Galv/Hot Dip Galv
Color: RAL5017 , 5015(Blue),RAL2004(Pure Orange), RAL1037( Yellow), Or Custom Color As Request Surface Treatment::: Powder Coating /Galvanized/Hot Dip Galvanized
Name: Heavy Duty Storage Shelf Rack
Highlight:

ISO9001 Heavy Duty Storage Shelf Rack

,

CE Heavy Duty Storage Shelf Rack

,

Warehouse Metal Shelf Storage Rack





Heavy duty Storage Shelf Rack Metal Shelf Storage Racking For Warehouse Equipment​



Selective Pallet Racking is the simplest & economical racking system which allows 100% accessibility to each pallet. This racking is suitable for large variety of SKU’s irrespective of quantity.

AcerackPallet Racking System is recognized as the worldwide most eifficient and versatile pallet storage rackingsystem.



Pallet rack are the most popular, functional racking in the industry. As the best solution for warehouse systems with palletized products, they store a wide variety of goods.


Our products are designed and manufactured strictly based on new Australian standard AS4084:2012 and FEM and RMI etc.
We only make our rack with the best qualified materials, such as Q235B/D, Q355B/D etc.



We're specialized in design and production of Pallet Racking and Shelving System, as well as Cantilever Rack, Mezzanine Platform, Radio Shuttle System, ASRS, Wire mesh deck etc.



Name
  Pallet Rack
Size
Customized Size
Material
Steel
Depth/Width/Height
Customized
Color
Customized
Weight Capacity
500~5000kg
Certification
AS4084-2012 / CE / ISO / RMI
Pitch holes
50.8mm 75mm,76.2mm
Surface finish
Powder Coated
Usage
Warehouse Storage System
Application
Widely Used
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available



Advantages

-- Size and color be customized
-- Direct access to each pallet
-- Simple stock management
-- Adaptable to any product volume, weight or size
-- Cost savings through wide span beams with piston lock connectors


Acerack Storage racking detailed introduction:



Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.n to make quick delivery.
Delivery Time Within 25 days for ordinary order quantity. Big production capacity allows us in a positio



ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 0

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 1

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 2

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 3

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 4





Packaging & Shipping

Standard export package by pallet and covered by plastic film:

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 5

ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 6ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 7



ISO9001 Heavy Duty Storage Shelf Rack , Metal Shelf Storage Rack For Warehouse Equipment​ 8





1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C  etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
