Warehouse Storage Automated Pallet Racking System Assembled Freely

Warehouse Storage Automated Pallet Racking System Assembled Freely

Detailed Product Description
Name: Automated Pallet Racking System Usage: Warehouse Storage
Certification: CE/ISO Capacity: 500-2000kg/layer
Width: 300mm - 1500mm
Highlight:

Automated Pallet Racking System

,

Warehouse Storage Automated Pallet Racking System

,

Automated Pallet Racking System Assembled Freely





Automated Warehouse Storage Radio Shuttle Pallet Racking system shuttle racking system



Pallet shuttle rack is a semi-automated high-density storage system, which uses an automatic device to move in the channel back and forth for transportation, forklift pick up at the end.

It’s a perfect option for drive in racking system using in cold storage, food and beverage industry and other low level of SKU. It could helps you to create maximum use of the storage and simplifies loading and unloading of goods.



Radio shuttle racking system is a new generation of high density storage racking system which max your storage utilization and working efficiency. Radio Shuttle racking system is a high-density storage system composed of racking, radio shuttle and forklift; Radio shuttle running on the special rail, and can be increased or decreased to raise and lower the pallet cargo, and return it to position.



Product name High quality warehouse pallet shelving rack radio shuttle racking system
Color RAL5005 Blue&RAL2004 Orange Material Q235B steel
Usage Warehouse Storage Certification CE/ISO
Size Customer Size Structure Assembled Freely
height 1350mm - 12000mm Capacity 500-2000kg/layer
width 300mm - 1500mm Thickness 1.5mm - 3.0mm
Style Radio Shuttle Rack Packing Customers'Request
Brand  Acerack Port Nanjing/Shanghai

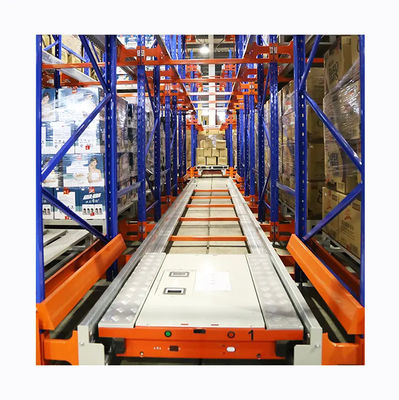

Warehouse Storage Automated Pallet Racking System Assembled Freely 0

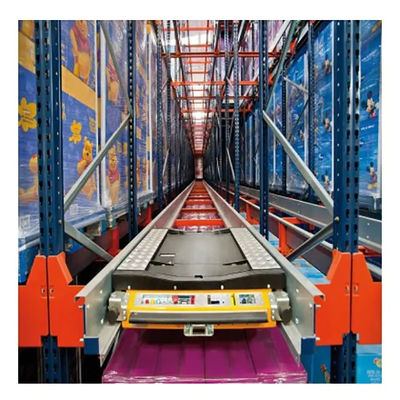

Warehouse Storage Automated Pallet Racking System Assembled Freely 1

What is Acerack Shuttle Racking System?

Acerack Shuttle Racking System is a high-density storage system. The shuttle cart, which is controlled by a wireless remote, takes the pallets in and out of the racking system. The forklift don’t need to enter the storage area. The first pallet’s location at either end is where the forklift loads and unloads the goods. The system could achieve both FIFO and FILO modes.

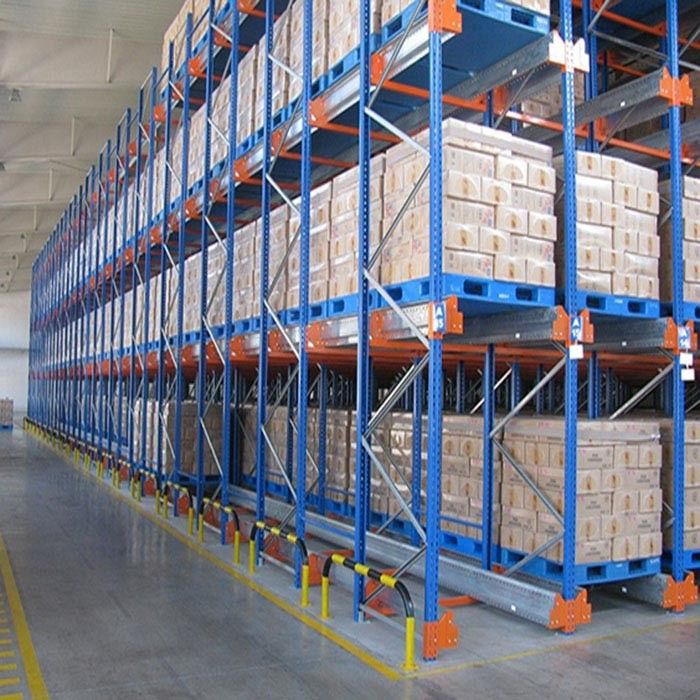

Warehouse Storage Automated Pallet Racking System Assembled Freely 2

Features of Radio Shuttle Rack:

• Efficient load and unload system, which ensures high accuracy.

• Less damage to the racking units as the forklift does not enter the racking unit.

• Greatly reduced labor cost

• Compatible with different pallet sizes.

• Ideal for storage at low temperature(-25℃)

   A large amount of charging time;



Warehouse Storage Automated Pallet Racking System Assembled Freely 3

Warehouse Storage Automated Pallet Racking System Assembled Freely 4



Shuttle Pallet Rack Advantages
1. Pallets are loaded onto a shuttle at the front of the lane, which transports the pallet to the other end. The in-built sensor on the shuttle detects the position of previous pallets and places the new load at a predetermined distance from them, before returning to the beginning.

2. The shuttle movements are sent via the radio remote controller, allowing the forklift truck and driver to be released for other tasks while the shuttle operates.

3. One shuttle can be shared by many lanes.

4. The shuttle is easily moved between lanes by a standard forklift. Shuttle racking system can be
Designed and customized according to the customers' different requirements.

  • Increased Storage Capacity
  • Optimization of storage, loading, and unloading stages
  • High operating speeds
  •
Pallet suitable for the equipment
Pallet material: steel, wood, plastic;
Pallet bottom structure: Sichuan or field shape, note: fork direction must have support in the
middle.

Warehouse Storage Automated Pallet Racking System Assembled Freely 5


1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
