Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage

Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage

Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage
Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage

Large Image :  Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage Get Best Price

Product Details:
Place of Origin: China
Brand Name: Acerack
Certification: RMI / AS4084-2012 / CE / ISO9001
Model Number: AR-M1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard package
Delivery Time: 15-25days
Payment Terms: L/C, T/T
Supply Ability: 5000T/Month
Detailed Product Description
Surface Treatment:: Powder Coating/Galvanized/Hot Dip Galv Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Material: 235B/D Steel And Also Q355B/D.High Strength Steel Name: Mezzanine Floor Platform
Highlight:

Multi Level Mezzanine Floor Platform

,

Steel Mezzanine Floor Racking System

,

Warehouse Mezzanine Floor Platform


Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 0



Multi-level Steel Mezzanine Floor platform Rack For Warehouse Storage​

Product Description

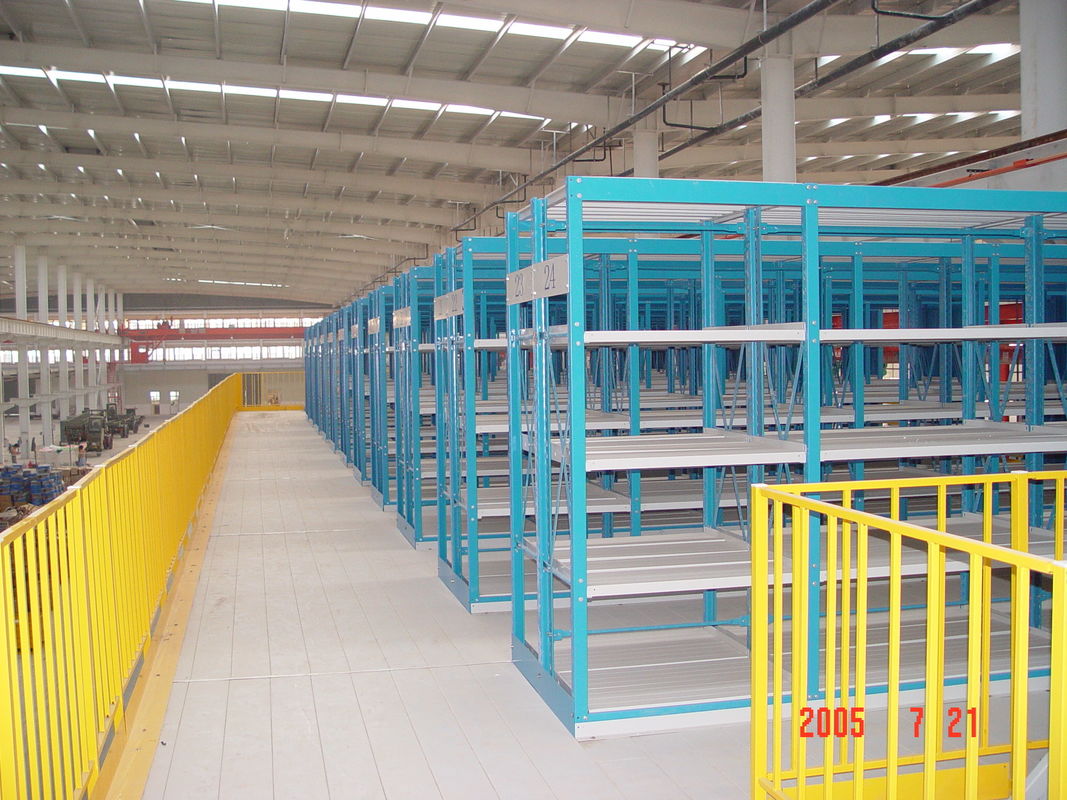

The Mezzanine rack is a self-supporting, walk-on platform of steel construction which can sometimes also be driven on. It creates an additional storage area within an existing warehouse.  Mezzanine storage system provides a multi-level system which significantly increase your storage capabilities by expanding upward rather than outward



Multi tier office Mezzanine racking suitable for high warehouse,light items, manual access,many varieties,large quantities,also suitable for technical reform of old warehouse,could improve warehouse space utilization.



The Mezzanine floor system is a middle mezzanine built on the existing shelf or work site for increasing storage area.

There can be two or three levels. It is suitable for storing light bulbs and small pieces of cargo, especially those of high-volume and multi-species or of multi-species and low volume. Cargos are usually elevated to the second floor or third floor by forklifts, hydraulic lifts or freight elevator, and then sent to a location by a car or pallettruck.





Futures:



Model Multi tier Office Mezzanine rack
Material Cold-rolled steel
Loading weight 500kg-2000kg per layer
Per layer Height Adjustable
Number of plies 2-3 layers
Surface treatment Electrostatic powder coating
Manufacturing technique Cold/profiling
Size&color Tailored
Use Storage a wide variety of goods.

Characteristics:

1.High-density storage style, specially for loosening or small box goods

2.Mezzanine can come true double level or triple level walkway for storage manually,save floor space.

3.Medium-duty with loading capacity of 50-500kg/layer and heavy-duty with loading capacity of 500-2000kg/layer

4.Working with hoisting machine, pallet jack, store manually for small or loosening goods

Structure

Use shelf as support floor,adopts special steel floor,mezzanine is freely to design to be multilayer(generally two-layer or three-layer),equipped with stairs and lift etc. Suitable for high warehouse,small items,manual operation and large quantity's storage.

Operation

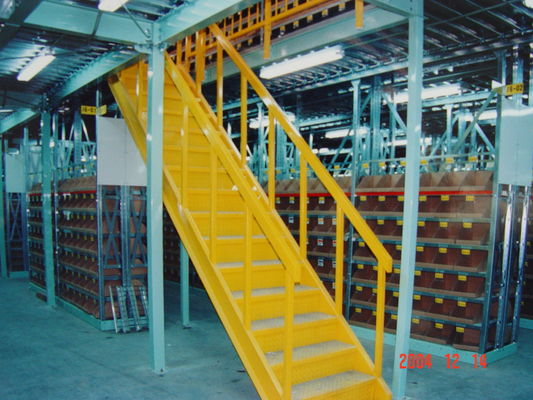

Mezzanine racking System can be designed so that not only hand pallet trucks but also electric pallet trucks can work on them. The material flow from the ground floor to the platform is handled by fork lift trucks or conveyor technology. Personnel access is provided by stairs.

Advantages:

Versatility and flexibility to meet any storage needs:
  • The most commonly used, of all storage systems for palletised goods.
  • Low capital cost
  • Easy installation and simple to adjust
  • Compatible with most types of handling equipment
  • Less storage density compared to other pallet racking systems
  • Infinitely adjustable and offering a wide range of options and components
  • Maximizes space use in any warehouse configuration while retaining optimum product accessibility
  • quality garantee 3 years
  • More than 100 workers enable us to garantee the delivery time, normal orders witin 20days
Quotation requirement A) The warehouse plan

B) The size of Mezzanine

C) The size of Mezzanine racking(length*width*height)
D) How many bays you want
E) How many layers you want
F) The loading capacity of each layer
G) The RAL color you want

Name Mezzanine Platform Racking; Mezzanine racking System; mezzanine racking for Warehouse, Multi tier office Mezzanine racking
Certification CE ;ISO9001;AS4084standard



Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 1





Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 2Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 3Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 4

Features:




Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 5

Features:

1. The good loading capacity enables customers could put all kinds of heavy duty products;
2. Space are divided into above and under;
3. On the top it can be used as office, ground part can be used as warehouse;
4. Increase warehouse usage space;
5. Saves the major expense and headache of relocation.
6. Can be altered, extended and if necessary rebuilt as your circumstances change.



Our Services

Warehouse storage rack, pallet rack Consulting and Design Services

We also offer:

• Professional CAD Drawings
• Stamped Engineered Drawings

Custom sizes and colors are also available.

Custom designed and built to meet your specific needs and requirements.





Mezzanine racking platform warehouse storage racking Industrial Factory storage

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Warehouse Rack System,Light Duty Rack,Mezzanine Rack,Wire Mesh Deck,Plastic Products

3. why should you buy from us not from other suppliers?
- TOP 5 Manufacturer & Supplier in China - Export to More Than 60 Countries - Professional Free Design & Swift Service


Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 6Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 7Multi Level Steel Mezzanine Floor Racking System For Warehouse Storage 8
