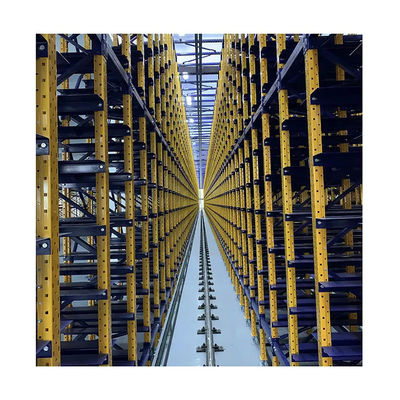

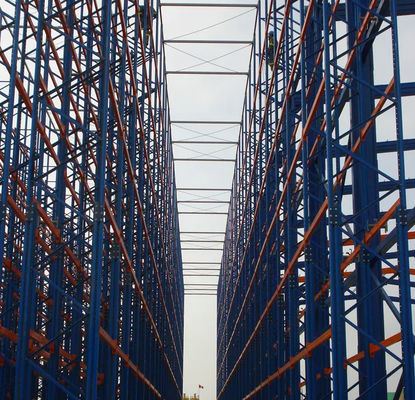

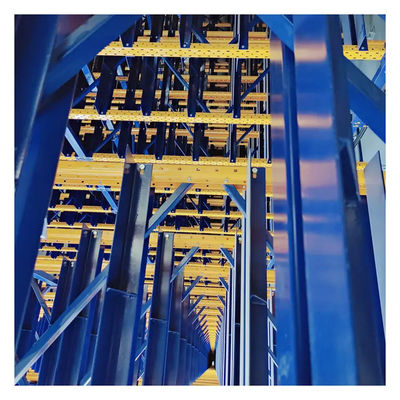

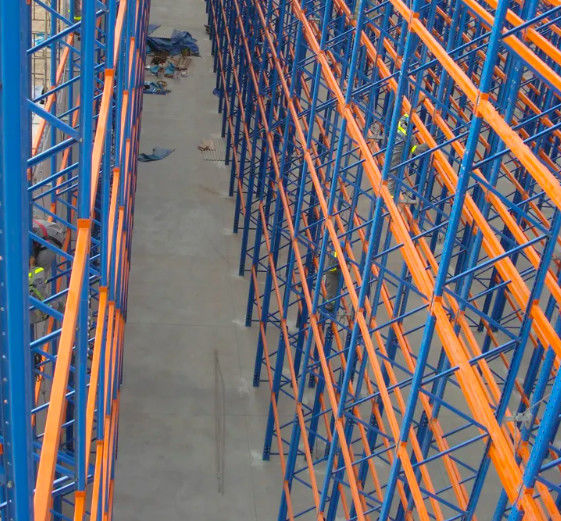

High Density Warehouse Automated Storage And Retrieval System ASRS

High Density Warehouse Automated Storage And Retrieval System ASRS

High Density Warehouse Automated Storage And Retrieval System ASRS
High Density Warehouse Automated Storage And Retrieval System ASRS High Density Warehouse Automated Storage And Retrieval System ASRS High Density Warehouse Automated Storage And Retrieval System ASRS High Density Warehouse Automated Storage And Retrieval System ASRS

Large Image :  High Density Warehouse Automated Storage And Retrieval System ASRS Get Best Price

Product Details:
Place of Origin: China
Brand Name: ACERACK
Certification: ISO9001; ISO14001; CE
Model Number: ASRS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export pacakge
Delivery Time: Typically standard products are delivered within 20-25 day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000 TONS PER MONTH
Detailed Product Description
Surface Treatment:: Powder Coating/Galvanized/Hot Dip Galv Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Material: 235B/D Steel And Also Q355B/D.High Strength Steel Name: Automated Storage And Retrieval System ASRS
Surface Treatment:: Powder Coating Application: Warehouse
Feature: Corrosion Protection Material: Steel Q235,Q355B
Usage: Automatic Warehouse
Highlight:

Automated Storage And Retrieval System ASRS

,

Warehouse Automated Storage And Retrieval System



High density racks  AS RS Racking Warehouse Automated Storage and Retrieval System



AS/RS(automatic storage retrieval systems) refers to a variety of computer-controlled methods for automatically placing and retrieving load from specific storage locations. An AS/RS environment would encompass many of the following technologies: Horizontal Carousels, Vertical Carousels, Vertical Lift Modules (VLM) and traditional Crane-in-Aisle Storage & Retrieval systems that utilize storage retrieval (SR) crane.



Make full use of space for automated warehouse is an important part of storage, storage of goods by using multi-level warehouse system, height can reach 30 meters, according to the needs of different types of elevated can set more than 12 meters high, middle (5-12 meters), and low (5 meters below). Compared with the library can save nearly 70 per cent of the area.



High Density Warehouse Automated Storage And Retrieval System ASRS 0



Name  Acerack ASRS
Code
Standard value (mm) (detailed data is determined according to the project situation)
Cargo width
W
400≤W≤2000
Cargo depth
D
500≤D≤2000
Cargo height
H
100≤H≤2000
Total height
GH
5000<GH≤24000
Top ground rail end length
F1, F2
Confirm according to the specific plan
Outer width of stacker
A1, A2
Confirm according to the specific plan
Stacker distance from the end
A3, A4
Confirm according to the specific plan
Buffer safety distance
A5
A5≥300 (polyurethane), A5≥100 (hydraulic buffer)
Buffer stroke
PM
PM≥150 (polyurethane), specific calculation (hydraulic buffer)
Cargo platform safety distance
A6
≥165
Ground rail end length
B1, B2
Confirm according to the specific plan
Stacker wheel distance
M
M=W+2700(W≥1300), M=4000(W<1300)
Ground rail offset
S1
Confirm according to the specific plan
Top rail offset
S2
Confirm according to the specific plan
Pickup Itinerary
S3
≤3000
Bumper width
W1
450
Aisle width
W2
D+200(D≥1300), 1500(D<1300)
First floor height
H1
Single deep H1≥700, double deep H1≥800
Top level height
H2
H2≥H+675(H≥1130), H2≥1800(H<1130)



High Density Warehouse Automated Storage And Retrieval System ASRS 1High Density Warehouse Automated Storage And Retrieval System ASRS 2



Packaging & Shipping

Standard export package by pallet and covered by plastic film:

High Density Warehouse Automated Storage And Retrieval System ASRS 3

High Density Warehouse Automated Storage And Retrieval System ASRS 4High Density Warehouse Automated Storage And Retrieval System ASRS 5



High Density Warehouse Automated Storage And Retrieval System ASRS 6



1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
