Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs

Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs

Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs
Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs

Large Image :  Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs Get Best Price

Product Details:
Place of Origin: China
Brand Name: Acerack
Certification: RMI / AS4084-2012 / CE / ISO9001
Model Number: AR-SP1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 15-25days
Payment Terms: L/C, T/T
Supply Ability: 5000T/Month
Detailed Product Description
Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request Load Capacity:: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Material: Q235B/D Steel And Also Q355B/D.High Strength Steel Surface Treatment:: Powder Coating /Galv/Hot Dip Galv
Color: RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037( Yellow), Or Custom Color As Request Surface Treatment::: Powder Coating /Galvanized/Hot Dip Galvanized
Name: Selective Pallet Racking
Highlight:

USA Type Warehouse Pallet Rack

,

Steel Pallet Rack 3000IBS

,

4000Ibs Teardrop Style Pallet Racking



USA Type Warehouse Steel Pallet Racks 3000IBS 4000Ibs Factory Direct Sale Teardrop Pallet Racks

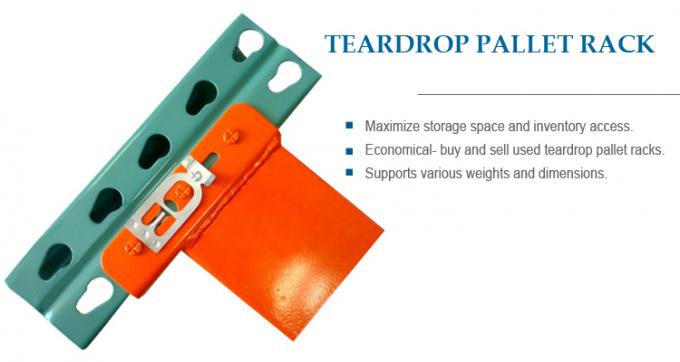

Teardrop pallet rack are one of the most common types of pallet racks used by warehouse storage and distribution centers across America. Teardrop pallet rack is another name for roll formed selective pallet rack, which is commonly manufactured in a teardrop style (nicknamed because the holes on the column of the upright are shaped like a teardrop). Pallets then rest on the horizontal load beams that are held in place by mounting clips. Because the clips on teardrop configurations can be quickly removed, the shelves can be adjusted to different heights or reinforced to bear different weights to accommodate various load sizes.





We're specialized in design and production of Pallet Racking and Shelving System, as well as Cantilever Rack, Mezzanine Platform, Radio Shuttle System, ASRS, Wire mesh deck etc.

Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 0



Name
  Pallet Rack
Size
Customized Size
Material
Steel
Depth/Width/Height
Customized
Color
Customized
Weight Capacity
500~5000kg
Certification
AS4084-2012 / CE / ISO / RMI
Pitch holes
50.8mm 75mm,76.2mm
Surface finish
Powder Coated
Usage
Warehouse Storage System
Application
Widely Used
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available





 Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 1

Name
Teardrop (US) Pallet Rack
Material
Steel
Depth
Upright 1.5;2.0;2.5mm
Weight Capacity
1000-1500 Kg Per Pallet
Width
Customized
Height
Customized

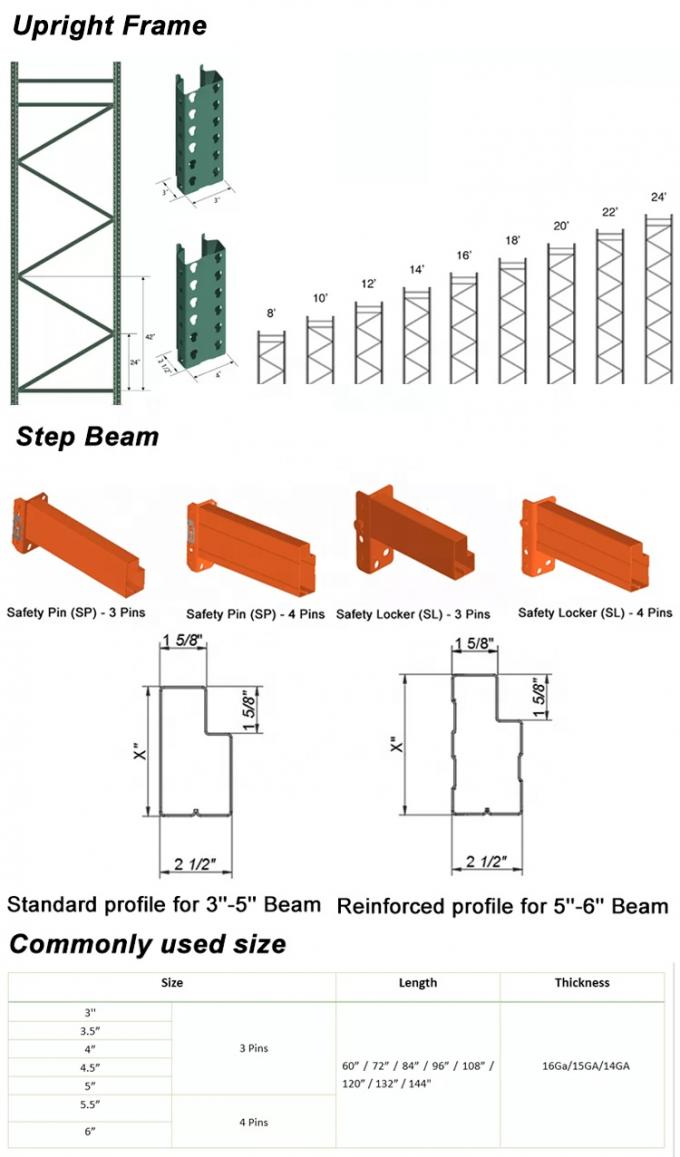

Frame Structure Type
3"*3" Welded & Bolted Upright frame with Baseplate
Beam Type
3"-6" Step Beam
Beam Connector Type
SP & SL Safety Locker
Surface finish
Powder coating; Galvanized; Hot Dip Gavanized
Application Environment
Normal Temperature or Cold Room (Max -40C)
Certification
CE
Free Sample
Available (Delivery Cost on Buyer)
OEM
Available

Features

-100% selective of goods / pallets
-Most economical to maximise warehouse space
-Picking rate: Fast



-Good stock / pallets rotation

-Floor space utilization: 30% to 40%
-Most popular application / solution to warehouse storage solution





Teardrop pallet racking

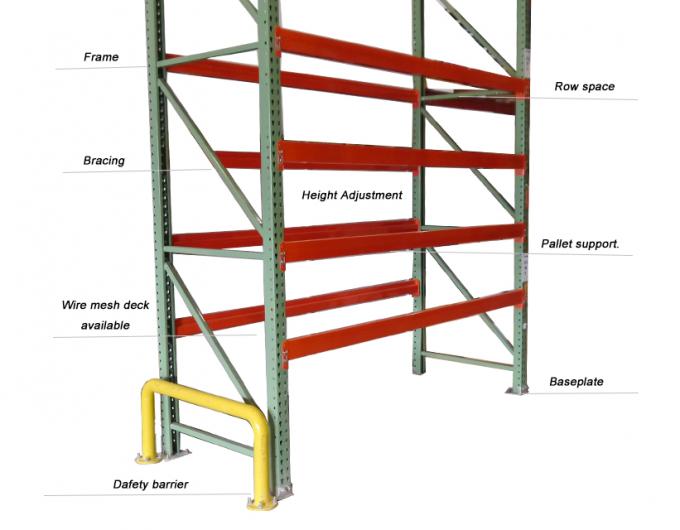

Teardrop pallet racking system is used for storing pallet packed products, by forklift operation. Main parts of the whole pallet racking include upright frames and beams, along with a wide range of accessories, like upright protector, aisle protector, pallet support, pallet stopper, wire decking, etc.



Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 2



Packaging & Shipping

Standard export package by pallet and covered by plastic film:

Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 3

Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 4Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 5



Warehouse Steel Teardrop Style Pallet Racking USA Type 3000IBS 4000Ibs 6





1. Q: Why choose us?
A: Professional design team, adequate production capacity, comply with AS4084. RMI and FEM standard.


2. Q: What is the material on your products?
A: The material normally use is Q235B/D steel and also Q355B/D.


3. Q: What is the packaging of the products?
A: Standard export package by pallet and covered by plastic film.


4. Q: What is the MOQ can order?
A: Normally is one 20ft container, small quantities are also available.



5. Q: What is the payment terms?
A: We accept TT or L/C  etc.



6. Q: What is your delivery time?
A: Normally is 2-4 weeks after receipt of the deposit.



7. Q: Are samples available?

A: Yes, we can send some sections of samples for your reference by express.
