Powder Coating Heavy Duty Pallet Rack Anti Corrosion 40Ft Height
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Heavy Duty Storage Pallet Rack | Scale: | Heavy Duty |
|---|---|---|---|
| Height: | Up To 40 Feet | Material: | Q235B/D Steel And Also Q355B/D.High Strength Steel |
| Surface Treatment: | Powder Coating /Galv/Hot Dip Galv | Color: | RAL5017、5015(Blue),RAL2004(Pure Orange), RAL1037( Yellow), Or Custom Color As Request |
| Load Capacity: | 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay | Feature: | Corrosion Protection |
| Highlight: | Powder Coating Storage Pallet Rack,40Ft Heavy Duty Pallet Rack,Anti Corrosion Selective Pallet Rack |
||

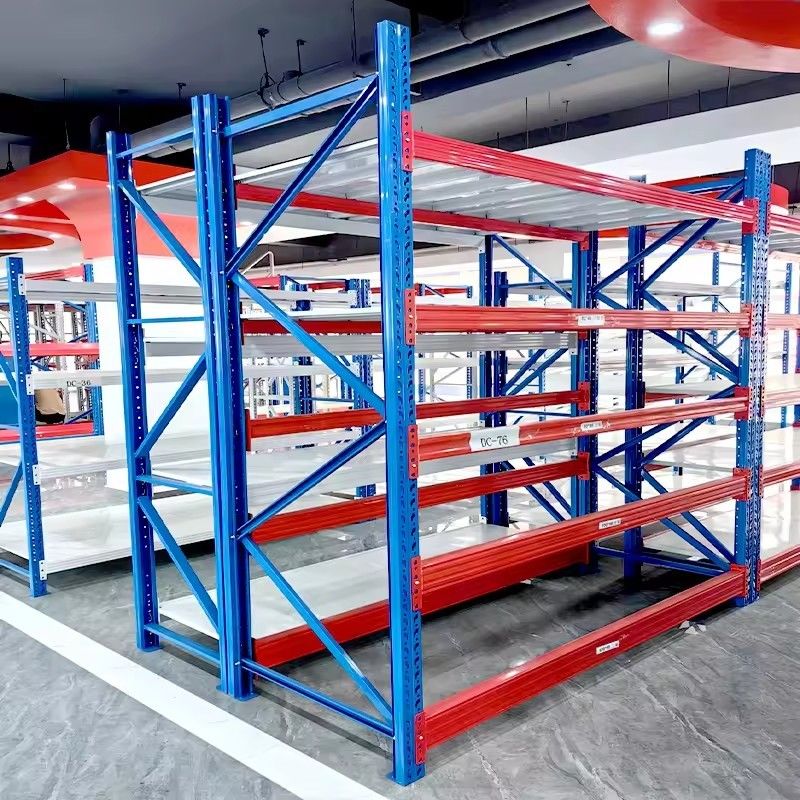

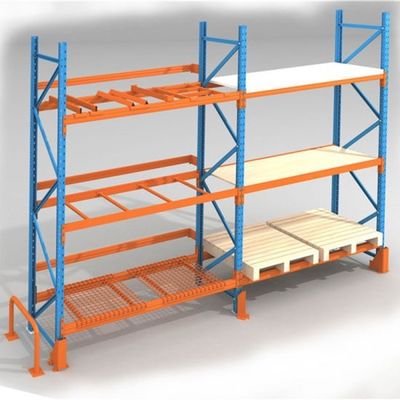

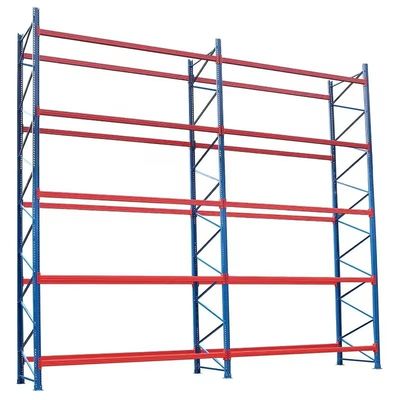

Warehouse Powder Coating storage racks Heavy Duty Selective Pallet Racking
Heavy duty StoragePallet rack has a large bearing capacity and can be used to store many heavy products. It has simple
structure and convenient installation. It is the most important storage rack in the traditional racks.
It is designed for optimizing storage of goods of all sizes and weights.
| HEAVY DUTY STORAGE RACKING SYSTEM | |
| PRODUCT NAME | Heavy duty warehouse storage pallet racking system |
| PRODUCT DESCRIPTIONS |
Heavy Duty Shelving Racks is specifically constructed and designed for tough loads between 1000kg - 3000kgs/UDL(Uniformly Distributive Load) where it is the most suitable system for heavy-capacity warehouse users. With our own innovation, the box beam as the levels increased the loading capacity of the Heavy Duty Shelving Rack System. In addition, the versatility of the box beam bracket enables easier installation process as well as the dismantling process in according to customers' application. |
Advantages Heavy duty pallet racking shelving
1, Direct access to each pallet
2, Simple stock management
3, Adaptable to any product volume, weight or size
4, Save costs by using Wide Span beams with selective end connectors
Specifications Heavy duty pallet racking shelving
Upright:
Standard section sizes: 80*60*1.8-2.0, 90*60/70*1.8-2.0-2.5, 100*67*2.0-2.5, 120*75/87/95*2.0-2.5mm.
Boxed Beam:
Standard section sizes: 80*50*1.5, 100*50*1.5-2.0, 110*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0,
Small Components include: Heavy duty pallet racking shelving
Post Baseplate, Bracing, Plastic Block for assembly of horizontal bracing, Anchors, Bolts & Nuts, and Safety Pin.
Accessories Heavy duty pallet racking shelving
Row Spacer connecting Upright Frames for stronger structure, U-shape Post Protector, L-shape Post Protector, Frame Barrier,
Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, etc.
Our packaging is fully scientific and firm, which is very convenient for container operation.
