Introduction

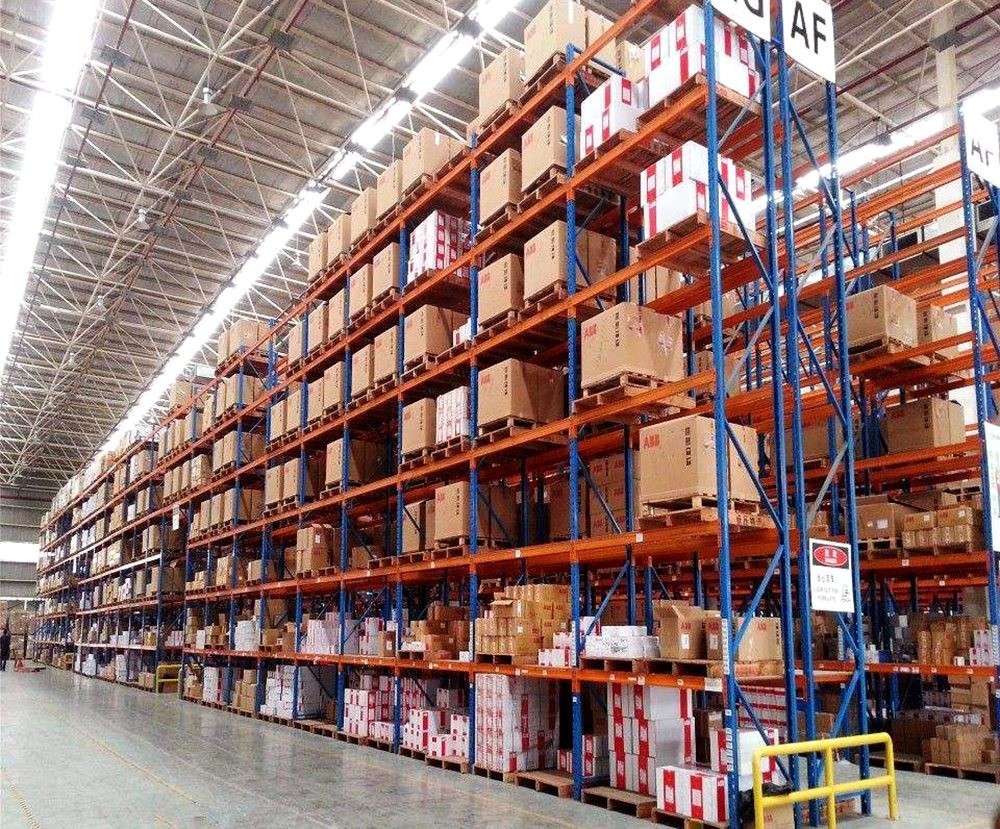

The Heavy Duty Pallet Rack represents a fundamental solution for warehouses, distribution centers, and retail backrooms seeking reliable, high-capacity storage. As a selective pallet racking system, it offers compatibility with all types of material handling equipment—including forklifts, pallet jacks, and automated guided vehicles—while ensuring straightforward access to each pallet position. This report outlines the product characteristics, core components, and practical implications for a mid-sized distribution facility.
1. Product Description
Selective pallet racking is the most widely used storage system for palletized goods. It delivers 100% selectivity, meaning any pallet can be directly accessed without relocating other pallets. This feature makes it particularly well-suited for First-In, First-Out (FIFO) inventory flows, ensuring that older stock is retrieved before newer arrivals. The system’s modular structure is both efficient and simple to install, reducing initial setup time. Despite its outstanding selectivity, selective pallet racking does have a limitation: its design inherently occupies more floor space compared to high-density solutions such as drive-in racks or push-back systems. However, its versatility and adaptability make it ideal for warehouses, supermarkets, and distribution centers where product variety and frequent access drive operational requirements.
2. Basic Components
Every selective pallet rack system comprises two primary structural elements: upright frames and load beams.
-
Upright Frames: These vertical steel columns support the entire load of stacked pallets. Heavy-duty uprights are engineered to withstand substantial static and dynamic forces, often rated for loads exceeding 5,000 kg per pair. The frames feature pre-punched holes at regular intervals (typically 50 mm or 2 inch pitches) to allow rapid reconfiguration of beam heights.
-
Load Beams: Horizontal members (beams) lock into the frame slots, forming each level’s resting surface. High-capacity beams include safety locks or clips to prevent accidental dislodgment when forklifts engage pallets. Beams are available in various lengths, commonly ranging from 1.2 m to 4 m, to accommodate different pallet dimensions.
In addition to frames and beams, the system incorporates a suite of accessories to enhance safety and functionality:
-
Row Spacers: Maintain consistent spacing between back-to-back racks, ensuring structural stability.
-
Wire Decking or Steel Deck Plates: Provide a continuous surface for non-standard or loose items, preventing smaller goods from slipping between beams.
-
Column Protectors and End-of-Aisle Guards: Defend uprights against forklift collisions, reducing the likelihood of rack damage and potential collapse.
-
Pallet Supports and Load Bars: Offer extra reinforcement on beams when storing particularly heavy or unstable loads.
3. Application Scenario: Mid-Sized Food Distributor
A mid-sized food distributor operating three regional warehouses adopted Heavy Duty Pallet Racks to replace outdated shelving and maximize storage density. Each warehouse deals with a high turnover of mixed food SKUs—ranging from dry goods to bagged produce—requiring frequent pallet loading and unloading. By installing selective pallet racks with 3.6 m uprights and double-entry beams (2.4 m length), the company achieved the following outcomes:
-
Improved Accessibility: Warehouse staff could instantly retrieve any pallet without shuffling other loads, reducing retrieval time by 25%.
-
Enhanced Safety: Wire decking and pallet supports ensured smaller cases and unstable stacks remained secure, eliminating product falls. Column protectors at each aisle end reduced rack damage from occasional forklift misalignments.
-
Optimized Space Utilization: Although the selective system occupies more floor area than a drive-in configuration, the distributor strategically redesigned aisle widths (optimized at 3.5 m) to balance selectivity with throughput. This arrangement increased usable pallet positions by 30% compared to previous shelving.
-
Scalability: When SKU counts grew, the modular nature of the uprights allowed easy addition of extra beam levels and frames without full system replacement.
4. Benefits and Key Takeaways
-
Flexibility: The selective design readily adapts to changing product dimensions and weight profiles.
-
Safety: Comprehensive accessory options safeguard both personnel and stored goods.
-
Cost Efficiency: Initial investment is moderate, and long-term maintenance costs remain low due to durable steel construction.
-
Operational Agility: Full pallet selectivity streamlines picking processes, directly translating into faster order fulfillment and reduced labor hours.
Conclusion
Heavy Duty Pallet Rack systems provide an effective, reliable solution for warehouses requiring maximum selectivity and straightforward implementation. By combining robust steel uprights, load beams with safety features, and a full range of accessories, these racks enhance storage capacity, protect inventory, and support evolving operational needs. For distribution environments handling diverse and fast-moving product lines, such as food distributors or retail supply centers, the selective pallet racking system remains a cornerstone of efficient warehouse design.
