Heavy Duty Drawer Die Mold Rack Mold Shelf Injection Mold Racks Stacking Racks

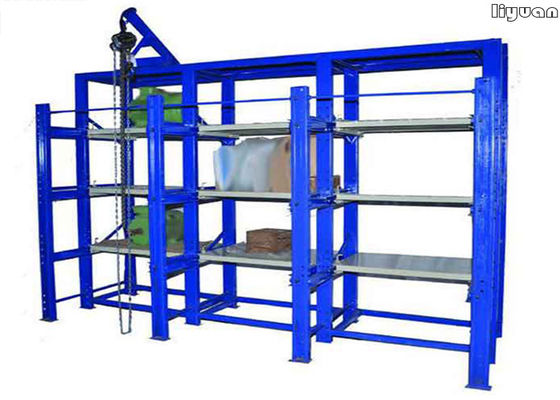

Overview of injection mold racks
This rack is consist of hoist frame and its front and rear rails, drawers, drawer rails, column pieces, front pillars, back pull, and hand hoists etc. Drawer racks are also called mould racks and are mainly used to store various moulds. The mould rack is equipped with manual movable carriage on the top and idler wheel rail on the bottom, and the sliding shelf panel could be freely pulled out when loading. Equipped with positioning safety device, whicj is reliable. Every component is connected by high-strength bolts. Modularity components can be assembled at any length.
Drawer rack, also called mold rack, which is mainly used to store mold products. It is possible to configure a mobile hoist (manual or power-driven) on the top, the roller pathways at the bottom of drawer make it free to pull with small force even after loading goods, and the additional positioning safety device makes it safer and more reliable.
Features of mold rack:
1, Die and Mould racks are very convenient to use die / mould storage devices with a built in lifting and lowering chain hoist.
2, The drawers are sturdy and can be pulled out and pushed back with the load.
3, In order to remove a die or mould from the rack simply put out the drawer on which the mould is placed.
4, Pull the monorail trolley and the chain hoist above the mould. Attach the hook of the hoist to the mould.
5, Lift the mould with the chain hoist about 2 inches above the drawer.
6, Push back the drawer into the rack and lower the mould to the ground or to a pallet lying in front of the rack.
7, The mould can now be moved to the machine with a pallet truck. Simple isn't it.
1. The post adopts 10#channel steel,diagonal brace of post is 25*25square merers.
2. Rack of backing plate is 50*50 angle iron,board size of backing plate is 2mm iron plate.
3. Sliding chute is made of folding 4mm iron plate.
4. Bearing is model 6403.
5. Bearing capacity:800-1000kg/backing plates.
6. With overhead crane bearing capacity 800kg.
>> Specifications of Heavy Duty Pallet Racks:
||Injection mold rack
||Cold-rolled Steel Q235
||2-6 Adjustable layers(can be customised)
||Packed by steel belt and plastic film
>>> Presentation Of Our Product
>>> Configuration Details
About Liyuan Company:
Shenzhen Liyuan Industrial Equipment Co., Ltd. is specialized in the development, design, production, sales, installation and service of storage and storage equipment since 2007 . It has become a large-scale storage shelf manufacturer at home and abroad. And advanced companies in the development and production of intelligent industrial equipment. The company has passed ISO9001: 2000 quality management certification, ISO14001: 2004 environmental management system certification, OHSAS18001: 2007 safety management system certification. And has won the honorary title of China's quality and credit enterprise and the title of advanced intelligent and technological enterprise.
Pallet rack shelving Consulting and Design Services
We offer no obligation professional consultation and design. Allow our experienced staff to assist you in designing a storage system that best suits your particular needs.
We also offer:
• Professional CAD Drawings
• Stamped Engineered Drawings
Custom sizes and colors are also available.
Custom designed and built to meet your specific needs and requirements.
